diaedge
BRP7UPR0406E
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

126922

ANSI

BRP7UPR0406E

ISO

BRP7UPR0406E

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

13

Regular price $784.09 USD
Regular price Sale price $784.09 USD
Sale

EDP

126922

ANSI

BRP7UPR0406E

ISO

BRP7UPR0406E

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

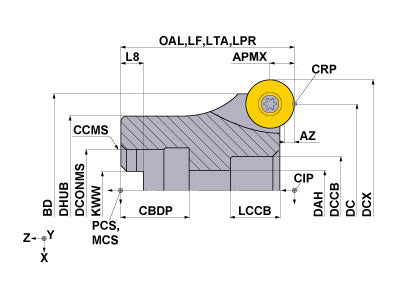

BRP7UPR0406E
Coolant
External
Hand
Right

Unit: inch

DC
3.366
DCX
4
LF
2.5
APMX
0.302
OAL
2.5
DCONMS
1.5
NOF
6
ZEFF
6
ZEFP
6
RMPX
4.04
GAMF
0
GAMP
5
BRP7UPR0406E

Unit: inch

DC
3.366
DCX
4
LF
2.5
APMX
0.302
OAL
2.5
DCONMS
1.5
NOF
6
ZEFF
6
ZEFP
6
RMPX
4.04
GAMF
0
GAMP
5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY25D 106905 TKY25D
inventory mark
$14.00
TS54 135001 TS54
inventory mark
$3.62
