diaedge
BRP6UPR202W20
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

127167

ANSI

BRP6UPR202W20

ISO

BRP6UPR202W20

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

25

Regular price $308.76 USD
Regular price Sale price $308.76 USD
Sale

EDP

127167

ANSI

BRP6UPR202W20

ISO

BRP6UPR202W20

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

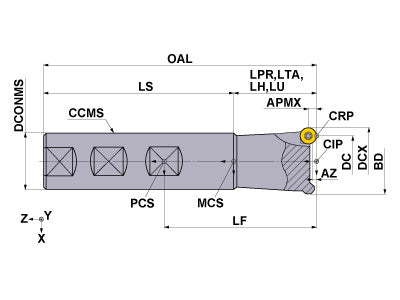

  • Drawings
  • Technical Information
BRP6UPR202W20
Coolant
External
Hand
Right

Unit: inch

DC
0.744
DCX
1.25
LF
5
APMX
0.24
LH
1.75
OAL
5
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
RMPX
17.3
GAMF
-3
GAMP
2
BRP6UPR202W20

Unit: inch

DC
0.744
DCX
1.25
LF
5
APMX
0.24
LH
1.75
OAL
5
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
RMPX
17.3
GAMF
-3
GAMP
2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15D 106900 TKY15D
inventory mark
$9.97
TS43 108744 TS43
inventory mark
$2.96
