EDP

127183

ANSI

BRP6UPR324W20

ISO

BRP6UPR324W20

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

8

Regular price $571.74 USD
Regular price Sale price $571.74 USD
Sale

EDP

127183

ANSI

BRP6UPR324W20

ISO

BRP6UPR324W20

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

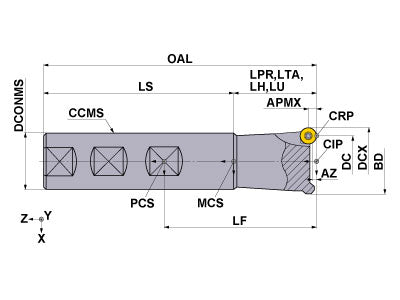

  • Drawings
  • Technical Information
BRP6UPR324W20
Coolant
External
Hand
Right

Unit: inch

DC
1.492
DCX
2
LF
5
APMX
0.24
LH
1.75
OAL
5
DCONMS
1.25
NOF
4
ZEFF
4
ZEFP
4
RMPX
7.15
GAMF
-2
GAMP
5
BRP6UPR324W20

Unit: inch

DC
1.492
DCX
2
LF
5
APMX
0.24
LH
1.75
OAL
5
DCONMS
1.25
NOF
4
ZEFF
4
ZEFP
4
RMPX
7.15
GAMF
-2
GAMP
5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS43 108744 TS43
inventory mark
$2.74
TKY15D 106900 TKY15D
inventory mark
$9.09
