diaedge
ASX445R2505
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

156195

ANSI

ASX445R2505

ISO

ASX445R2505

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

40

Regular price $652.94 USD
Regular price Sale price $652.94 USD
Sale

EDP

156195

ANSI

ASX445R2505

ISO

ASX445R2505

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

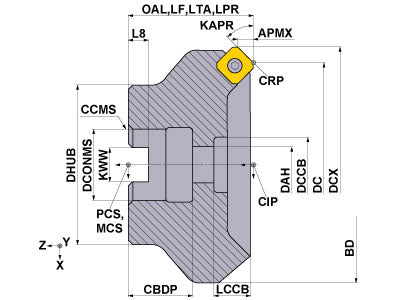

  • Drawings
  • Technical Information
ASX445R2505
Coolant
External
Hand
Right

Unit: inch

DC
2.5
DCX
3.009
LF
1.575
APMX
0.236
OAL
1.575
DCONMS
0.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
45
RPMX
16000
GAMF
-13
GAMP
20
WT
1.5
ASX445R2505

Unit: inch

DC
2.5
DCX
3.009
LF
1.575
APMX
0.236
OAL
1.575
DCONMS
0.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
45
RPMX
16000
GAMF
-13
GAMP
20
WT
1.5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
WCS503507H 160291 WCS503507H
inventory mark
$7.37
TIP15T 160311 TIP15T
inventory mark
$4.52
STASX445N 160320 STASX445N
inventory mark
$7.88
TPS35 160303 TPS35
inventory mark
$2.74
HKY35R 160338 HKY35R
inventory mark
$3.37
