ASX445R0607E
Skip to product information

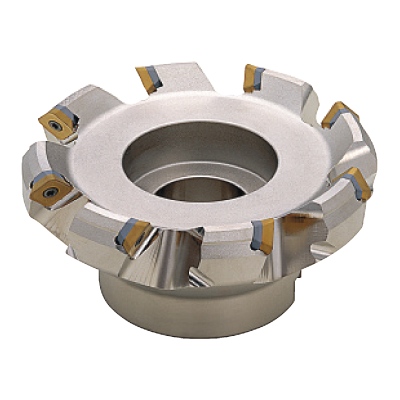

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

156304

ANSI

ASX445R0607E

ISO

ASX445R0607E

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

13

Regular price $1,383.86 USD
Regular price Sale price $1,383.86 USD
Sale

EDP

156304

ANSI

ASX445R0607E

ISO

ASX445R0607E

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

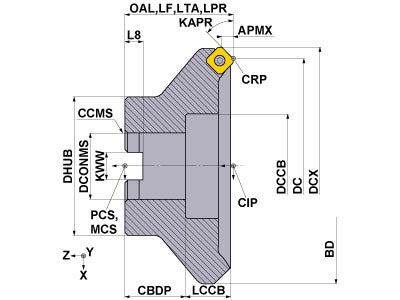

  • Drawings
  • Technical Information
ASX445R0607E
Coolant
External
Hand
Right

Unit: inch

DC
6
DCX
6.511
LF
2.48
APMX
0.236
OAL
2.48
DCONMS
1.5
NOF
7
ZEFF
7
ZEFP
7
KAPR
45
RPMX
10000
GAMF
-10
GAMP
23
WT
10.4
ASX445R0607E

Unit: inch

DC
6
DCX
6.511
LF
2.48
APMX
0.236
OAL
2.48
DCONMS
1.5
NOF
7
ZEFF
7
ZEFP
7
KAPR
45
RPMX
10000
GAMF
-10
GAMP
23
WT
10.4

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS35 160303 TPS35
inventory mark
$2.74
WCS503507H 160291 WCS503507H
inventory mark
$7.37
HKY35R 160338 HKY35R
inventory mark
$3.37
STASX445N 160320 STASX445N
inventory mark
$7.88
TIP15T 160311 TIP15T
inventory mark
$4.52
