diaedge
BRP3UNR122W12
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

166650

ANSI

BRP3UNR122W12

ISO

BRP3UNR122W12

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

30

Regular price $205.70 USD
Regular price Sale price $205.70 USD
Sale

EDP

166650

ANSI

BRP3UNR122W12

ISO

BRP3UNR122W12

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

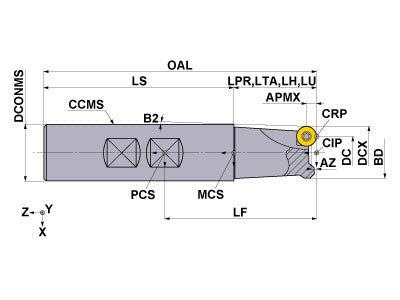

  • Drawings
  • Technical Information
BRP3UNR122W12
Coolant
External
Hand
Right

Unit: inch

DC
0.429
DCX
0.75
LF
4
APMX
0.146
LH
1.25
OAL
4
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
RMPX
13.5
GAMF
-3
GAMP
-5
BRP3UNR122W12

Unit: inch

DC
0.429
DCX
0.75
LF
4
APMX
0.146
LH
1.25
OAL
4
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
RMPX
13.5
GAMF
-3
GAMP
-5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY08F 106896 TKY08F
inventory mark
$3.37
CS250560T 172531 CS250560T
inventory mark
$3.80
