BRP4UNR101LW10
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

166705

ANSI

BRP4UNR101LW10

ISO

BRP4UNR101LW10

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

8

Regular price $228.82 USD
Regular price Sale price $228.82 USD
Sale

EDP

166705

ANSI

BRP4UNR101LW10

ISO

BRP4UNR101LW10

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

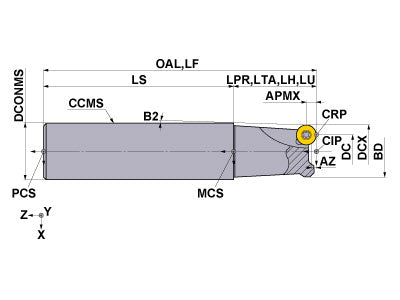

  • Drawings
  • Technical Information
BRP4UNR101LW10
Coolant
External
Hand
Right

Unit: mm

DC
6.2
DCX
15.875
LF
152.4
APMX
4.5
LH
71.12
OAL
152.4
DCONMS
15.875
NOF
1
ZEFF
1
ZEFP
1
RMPX
4.07
GAMF
-14
GAMP
-5
BRP4UNR101LW10

Unit: mm

DC
6.2
DCX
15.875
LF
152.4
APMX
4.5
LH
71.12
OAL
152.4
DCONMS
15.875
NOF
1
ZEFF
1
ZEFP
1
RMPX
4.07
GAMF
-14
GAMP
-5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15F 106901 TKY15F
inventory mark
$6.47
