diaedge
BRP4UNR121LW12
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

166721

ANSI

BRP4UNR121LW12

ISO

BRP4UNR121LW12

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

9

Regular price $205.70 USD
Regular price Sale price $205.70 USD
Sale

EDP

166721

ANSI

BRP4UNR121LW12

ISO

BRP4UNR121LW12

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

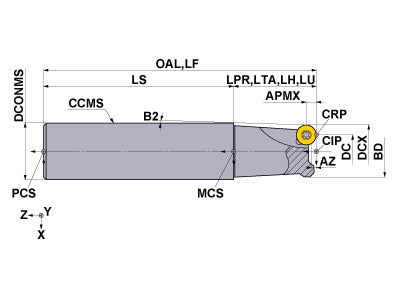

  • Drawings
  • Technical Information
BRP4UNR121LW12
Coolant
External
Hand
Right

Unit: inch

DC
0.366
DCX
0.75
LF
7
APMX
0.177
LH
3.9
OAL
7
DCONMS
0.75
NOF
1
ZEFF
1
ZEFP
1
RMPX
8.41
GAMF
-6
GAMP
-5
BRP4UNR121LW12

Unit: inch

DC
0.366
DCX
0.75
LF
7
APMX
0.177
LH
3.9
OAL
7
DCONMS
0.75
NOF
1
ZEFF
1
ZEFP
1
RMPX
8.41
GAMF
-6
GAMP
-5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15F 106901 TKY15F
inventory mark
$4.03
