diaedge
BRP4UNR162W16
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

166730

ANSI

BRP4UNR162W16

ISO

BRP4UNR162W16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

17

Regular price $305.46 USD
Regular price Sale price $305.46 USD
Sale

EDP

166730

ANSI

BRP4UNR162W16

ISO

BRP4UNR162W16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

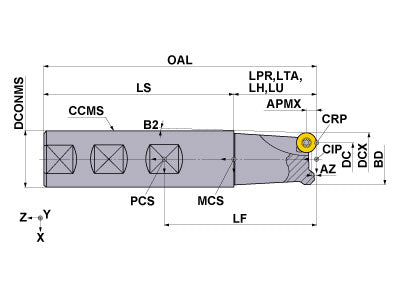

  • Drawings
  • Technical Information
BRP4UNR162W16
Coolant
External
Hand
Right

Unit: inch

DC
0.618
DCX
1
LF
4.5
APMX
0.177
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
RMPX
12.98
GAMF
0
GAMP
-5
BRP4UNR162W16

Unit: inch

DC
0.618
DCX
1
LF
4.5
APMX
0.177
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
RMPX
12.98
GAMF
0
GAMP
-5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15F 106901 TKY15F
inventory mark
$4.44
