BRP4UNR162ELW16
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

166748

ANSI

BRP4UNR162ELW16

ISO

BRP4UNR162ELW16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

17

Regular price $347.32 USD
Regular price Sale price $347.32 USD
Sale

EDP

166748

ANSI

BRP4UNR162ELW16

ISO

BRP4UNR162ELW16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

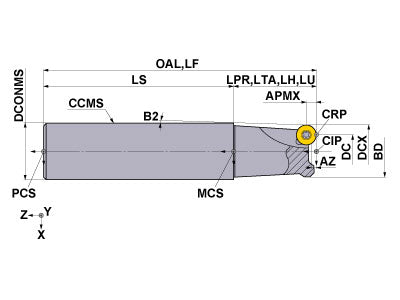

  • Drawings
  • Technical Information
BRP4UNR162ELW16
Coolant
External
Hand
Right

Unit: mm

DC
15.7
DCX
25.4
LF
254
APMX
4.5
LH
129.54
OAL
254
DCONMS
25.4
NOF
2
ZEFF
2
ZEFP
2
RMPX
12.98
GAMF
0
GAMP
-5
BRP4UNR162ELW16

Unit: mm

DC
15.7
DCX
25.4
LF
254
APMX
4.5
LH
129.54
OAL
254
DCONMS
25.4
NOF
2
ZEFF
2
ZEFP
2
RMPX
12.98
GAMF
0
GAMP
-5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15F 106901 TKY15F
inventory mark
$6.47
