BRP4UNR203ELW20
Skip to product information

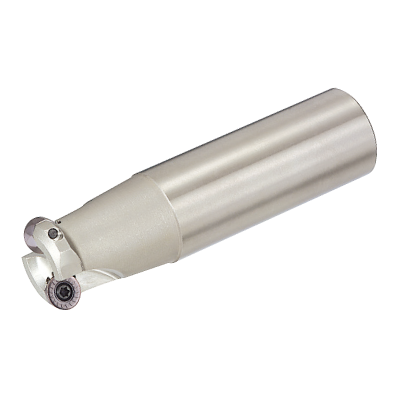

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

166764

ANSI

BRP4UNR203ELW20

ISO

BRP4UNR203ELW20

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical

14

Regular price $459.12 USD
Regular price Sale price $459.12 USD
Sale

EDP

166764

ANSI

BRP4UNR203ELW20

ISO

BRP4UNR203ELW20

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Application_Face milling Corner_Radius Application_Pocket milling Accuracy_3D milling Helical
View full details
  • Dimensions
  • Features

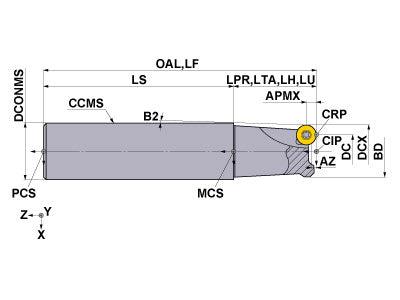

  • Drawings
  • Technical Information
BRP4UNR203ELW20
Coolant
External
Hand
Right

Unit: inch

DC
0.866
DCX
1.25
LF
12
APMX
0.177
LH
7.1
OAL
12
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
RMPX
8.18
GAMF
0
GAMP
-5
BRP4UNR203ELW20

Unit: inch

DC
0.866
DCX
1.25
LF
12
APMX
0.177
LH
7.1
OAL
12
DCONMS
1.25
NOF
3
ZEFF
3
ZEFP
3
RMPX
8.18
GAMF
0
GAMP
-5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15F 106901 TKY15F
inventory mark
$4.03
