diaedge
ASX445R0820M
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

175441

ANSI

ASX445R0820M

ISO

ASX445R0820M

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

3

Regular price $2,212.80 USD
Regular price Sale price $2,212.80 USD
Sale

EDP

175441

ANSI

ASX445R0820M

ISO

ASX445R0820M

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

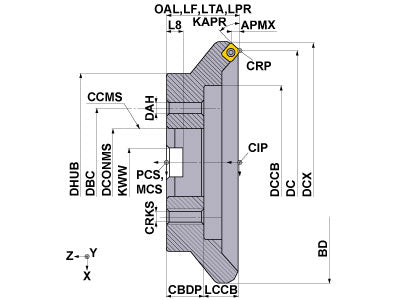

  • Drawings
  • Technical Information
ASX445R0820M
Coolant
External
Hand
Right

Unit: inch

DC
8
DCX
8.509
LF
2.48
APMX
0.236
OAL
2.48
DCONMS
2.5
DCSFMS
6.89
NOF
20
ZEFF
20
ZEFP
20
KAPR
45
RPMX
9000
GAMF
-10
GAMP
23
WT
14.6
ASX445R0820M

Unit: inch

DC
8
DCX
8.509
LF
2.48
APMX
0.236
OAL
2.48
DCONMS
2.5
DCSFMS
6.89
NOF
20
ZEFF
20
ZEFP
20
KAPR
45
RPMX
9000
GAMF
-10
GAMP
23
WT
14.6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS35 160303 TPS35
inventory mark
$2.96
TIP15T 160311 TIP15T
inventory mark
$4.96
STASX445N 160320 STASX445N
inventory mark
$8.51
HKY35R 160338 HKY35R
inventory mark
$3.64
WCS503507H 160291 WCS503507H
inventory mark
$7.96
