diaedge
ASX445R1024M
Skip to product information

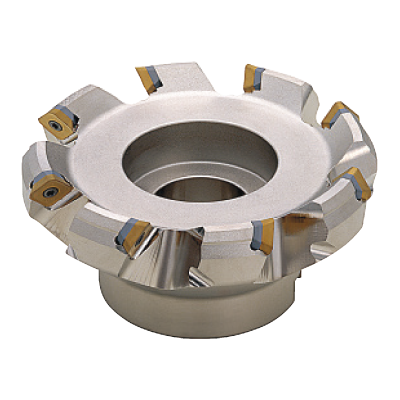

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

175468

ANSI

ASX445R1024M

ISO

ASX445R1024M

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

7

Regular price $2,229.72 USD
Regular price Sale price $2,229.72 USD
Sale

EDP

175468

ANSI

ASX445R1024M

ISO

ASX445R1024M

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

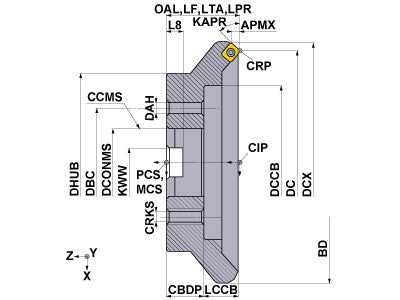

  • Drawings
  • Technical Information
ASX445R1024M
Coolant
External
Hand
Right

Unit: inch

DC
10
DCX
10.508
LF
2.48
APMX
0.236
OAL
2.48
DCONMS
2.5
NOF
24
ZEFF
24
ZEFP
24
KAPR
45
RPMX
8000
GAMF
-10
GAMP
23
WT
23.7
ASX445R1024M

Unit: inch

DC
10
DCX
10.508
LF
2.48
APMX
0.236
OAL
2.48
DCONMS
2.5
NOF
24
ZEFF
24
ZEFP
24
KAPR
45
RPMX
8000
GAMF
-10
GAMP
23
WT
23.7

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
WCS503507H 160291 WCS503507H
inventory mark
$7.37
TIP15T 160311 TIP15T
inventory mark
$4.52
STASX445N 160320 STASX445N
inventory mark
$7.88
TPS35 160303 TPS35
inventory mark
$2.74
HKY35R 160338 HKY35R
inventory mark
$3.37
