diaedge
AQXUR244WA20S
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

189878

ANSI

AQXUR244WA20S

ISO

AQXUR244WA20S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
23

Price
$685.12 USD
$685.12 USD
Sale

EDP

189878

ANSI

AQXUR244WA20S

ISO

AQXUR244WA20S

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

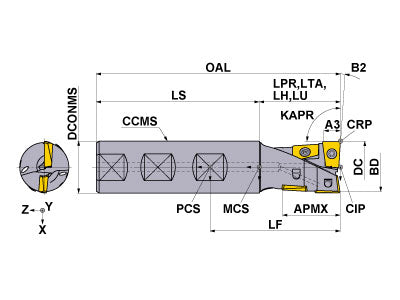

  • Drawings
  • Technical Information
AQXUR244WA20S
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
5.625
APMX
1.5
LH
2.375
OAL
5.625
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
1
KAPR
90
RMPX
3
AQXUR244WA20S

Unit: inch

DC
1.5
LF
5.625
APMX
1.5
LH
2.375
OAL
5.625
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
1
KAPR
90
RMPX
3


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS5 108747 TS5
inventory mark
$2.96
TKY25D 106905 TKY25D
inventory mark
$15.12
