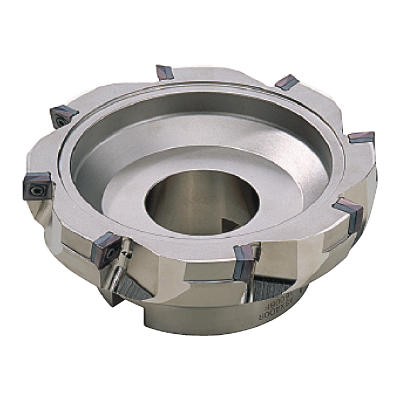

ASX400R2504
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

198601

ANSI

ASX400R2504

ISO

ASX400R2504

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

Stock
16

Price
$648.28 USD
$648.28 USD
Sale

EDP

198601

ANSI

ASX400R2504

ISO

ASX400R2504

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions

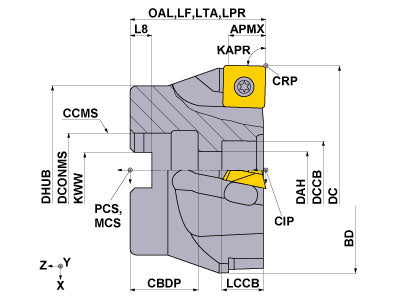

  • Drawings
ASX400R2504
Coolant
External
Hand
Right

Unit: inch

DC
2.5
LF
1.575
APMX
0.394
OAL
1.575
DCONMS
0.75
DCSFMS
1.969
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RPMX
16000
GAMF
-10
GAMP
11
WT
1.100
ASX400R2504

Unit: inch

DC
2.5
LF
1.575
APMX
0.394
OAL
1.575
DCONMS
0.75
DCSFMS
1.969
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RPMX
16000
GAMF
-10
GAMP
11
WT
1.100


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15T 160311 TIP15T
inventory mark
$5.93
WCS503507H 160291 WCS503507H
inventory mark
$9.26
STASX400N 204281 STASX400N
inventory mark
$9.65
TPS35 160303 TPS35
inventory mark
$3.36
HKY35R 160338 HKY35R
inventory mark
$4.13
