ASX400R0506E
print open mailer

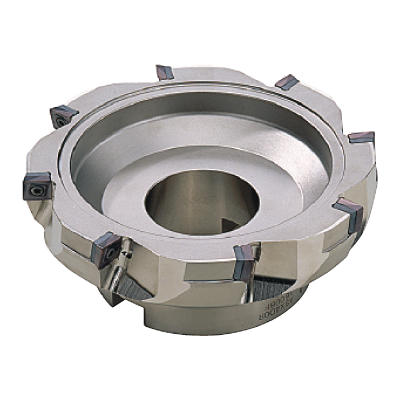

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

198635

ANSI

ASX400R0506E

ISO

ASX400R0506E

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

Stock
13

Price
$1,190.31 USD
$1,190.31 USD
Sale

EDP

198635

ANSI

ASX400R0506E

ISO

ASX400R0506E

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions

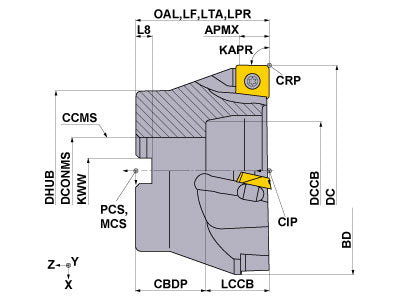

  • Drawings
ASX400R0506E
Coolant
External
Hand
Right

Unit: mm

DC
127
LF
63
APMX
10
OAL
63
DCONMS
38.1
DCSFMS
80
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RPMX
12000
GAMF
-9
GAMP
11
WT
5.500
ASX400R0506E

Unit: mm

DC
127
LF
63
APMX
10
OAL
63
DCONMS
38.1
DCSFMS
80
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RPMX
12000
GAMF
-9
GAMP
11
WT
5.500


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15T 160311 TIP15T
inventory mark
$7.24
WCS503507H 160291 WCS503507H
inventory mark
$11.31
TPS35 160303 TPS35
inventory mark
$3.36
HKY35R 160338 HKY35R
inventory mark
$4.13
STASX400N 204281 STASX400N
inventory mark
$10.52
