diaedge
ASX400R0612E
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

198723

ANSI

ASX400R0612E

ISO

ASX400R0612E

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

7

Regular price $1,568.18 USD
Regular price Sale price $1,568.18 USD
Sale

EDP

198723

ANSI

ASX400R0612E

ISO

ASX400R0612E

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions
  • Features

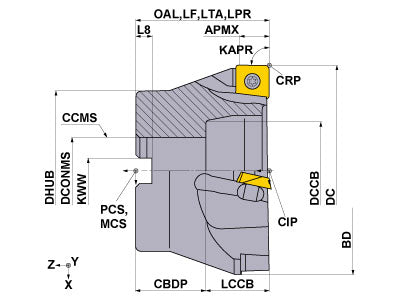

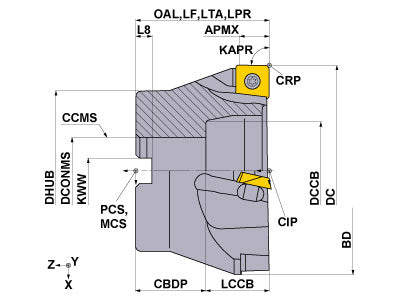

  • Drawings
  • Technical Information
ASX400R0612E
Coolant
External
Hand
Right

Unit: inch

DC
6
LF
2.48
APMX
0.394
OAL
2.48
DCONMS
1.5
NOF
12
ZEFF
12
ZEFP
12
KAPR
90
RPMX
10000
GAMF
-9
GAMP
11
WT
8.8
ASX400R0612E

Unit: inch

DC
6
LF
2.48
APMX
0.394
OAL
2.48
DCONMS
1.5
NOF
12
ZEFF
12
ZEFP
12
KAPR
90
RPMX
10000
GAMF
-9
GAMP
11
WT
8.8

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
WCS503507H 160291 WCS503507H
inventory mark
$7.37
TIP15T 160311 TIP15T
inventory mark
$4.52
STASX400N 204281 STASX400N
inventory mark
$7.88
TPS35 160303 TPS35
inventory mark
$2.74
HKY35R 160338 HKY35R
inventory mark
$3.37
