ASX400R0819M
print open mailer

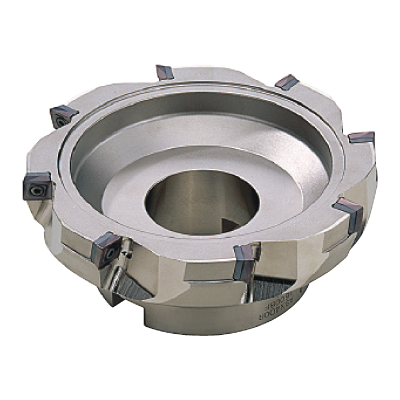

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

198811

ANSI

ASX400R0819M

ISO

ASX400R0819M

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

Stock
3

Price
$2,125.22 USD
$2,125.22 USD
Sale

EDP

198811

ANSI

ASX400R0819M

ISO

ASX400R0819M

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions

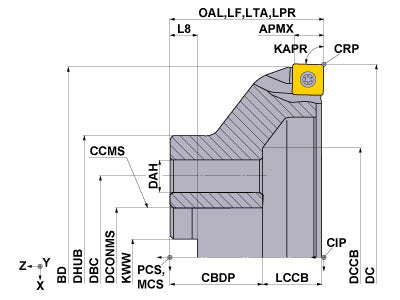

  • Drawings
ASX400R0819M
Coolant
External
Hand
Right

Unit: inch

DC
8
LF
2.48
APMX
0.394
OAL
2.48
DCONMS
2.5
DCSFMS
6.299
NOF
19
ZEFF
19
ZEFP
19
KAPR
90
RPMX
9000
GAMF
-9
GAMP
11
WT
15.000
ASX400R0819M

Unit: inch

DC
8
LF
2.48
APMX
0.394
OAL
2.48
DCONMS
2.5
DCSFMS
6.299
NOF
19
ZEFF
19
ZEFP
19
KAPR
90
RPMX
9000
GAMF
-9
GAMP
11
WT
15.000


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS35 160303 TPS35
inventory mark
$3.36
WCS503507H 160291 WCS503507H
inventory mark
$9.26
STASX400N 204281 STASX400N
inventory mark
$9.65
HKY35R 160338 HKY35R
inventory mark
$4.13
TIP15T 160311 TIP15T
inventory mark
$5.93
