diaedge

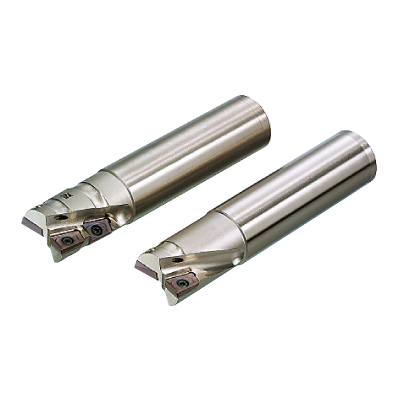

AQXUR212SA20L
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

202139

ANSI

AQXUR212SA20L

ISO

AQXUR212SA20L

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

21

Regular price $402.69 USD
Regular price Sale price $402.69 USD
Sale

EDP

202139

ANSI

AQXUR212SA20L

ISO

AQXUR212SA20L

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
90 Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

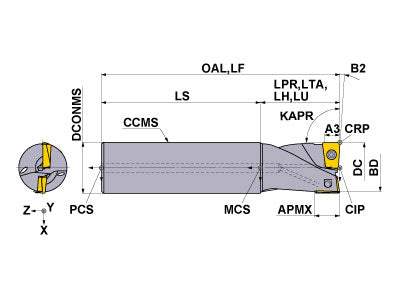

  • Drawings
  • Technical Information
AQXUR212SA20L
Coolant
Internal
Hand
Right

Unit: inch

DC
1.297
LF
9
APMX
0.563
LH
2
OAL
9
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
1
KAPR
90
RMPX
3
AQXUR212SA20L

Unit: inch

DC
1.297
LF
9
APMX
0.563
LH
2
OAL
9
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
1
KAPR
90
RMPX
3

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS407 263572 TS407
inventory mark
$2.74
TKY15D 106900 TKY15D
inventory mark
$9.09
