EDP
214797
ANSI
MAS01875MB HTI10
ISO
MAS01875MB HTI10
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
Stock
32
Price
Regular price
$94.51 USD
Regular price
Sale price
$94.51 USD
Unit price
/
per
EDP
214797
ANSI
MAS01875MB HTI10
ISO
MAS01875MB HTI10
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
Change the number in sums of 1s.
Couldn't load pickup availability
![MAS01875MB HTI10](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MAS_IISS_751b5838-a71b-47ae-8373-3cb2b4add74d.png?v=1720693294&width=1445)
![MAS01875MB HTI10](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MAS_IISS_1_06eb54ab-e7a2-4bc9-9679-5505f9979df0.jpg?v=1720693294&width=1445)
- Dimensions
- Features

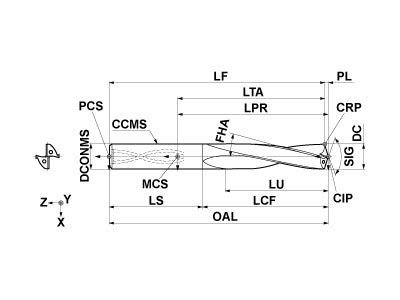

- Drawings
- Technical Information
![MAS01875MB HTI10](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MAS_IISS_1_06eb54ab-e7a2-4bc9-9679-5505f9979df0.jpg?v=1720693294&width=416)
Coolant
Internal
Hand
Right
Unit: inch
DC
0.1875
ULDR
3
LU
0.597
LCF
1.333
OAL
2.908
DCONMS
0.1969
PL
0.034
SIG
140
FHA
10
DC Max
0.0002
DC Min
0
TCDCON
h6
ZEFF
2
![MAS01875MB HTI10](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MAS_IISS_1_06eb54ab-e7a2-4bc9-9679-5505f9979df0.jpg?v=1720693294&width=416)
Unit: inch
DC
0.1875
ULDR
3
LU
0.597
LCF
1.333
OAL
2.908
DCONMS
0.1969
PL
0.034
SIG
140
FHA
10
DC Max
0.0002
DC Min
0
TCDCON
h6
ZEFF
2
High hole accuracy.
Pre-hole drilling for rolled tap.
2D Model (DXF)
3D Model (STP)
