MAS05937MB HTI10
Skip to product information

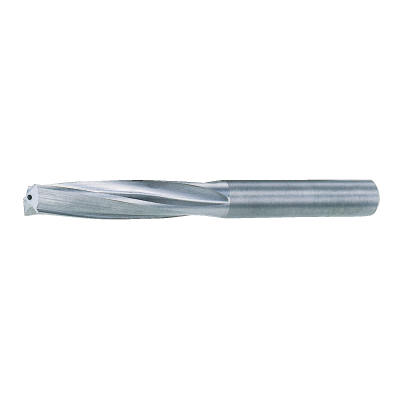

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

215124

ANSI

MAS05937MB HTI10

ISO

MAS05937MB HTI10

K (Cast Iron) N (Non-Ferrous)

6

Regular price $334.81 USD
Regular price Sale price $334.81 USD
Sale

EDP

215124

ANSI

MAS05937MB HTI10

ISO

MAS05937MB HTI10

K (Cast Iron) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

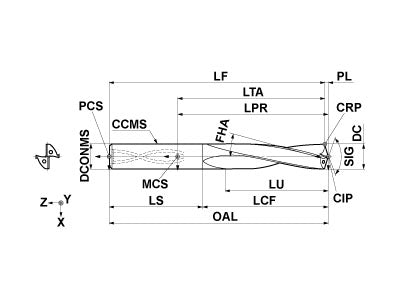

  • Drawings
  • Technical Information
MAS05937MB HTI10
Coolant
Internal
Hand
Right

Unit: inch

DC
0.5937
ULDR
3
LU
1.889
LCF
3.1
OAL
5.384
DCONMS
0.6299
PL
0.108
SIG
140
FHA
10
DC Max
0.0002
DC Min
0
TCDCON
h6
ZEFF
2
MAS05937MB HTI10

Unit: inch

DC
0.5937
ULDR
3
LU
1.889
LCF
3.1
OAL
5.384
DCONMS
0.6299
PL
0.108
SIG
140
FHA
10
DC Max
0.0002
DC Min
0
TCDCON
h6
ZEFF
2
