diaedge
BXD4000R162SA12S
Skip to product information

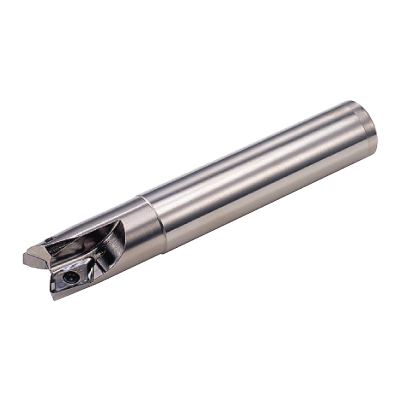

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

215159

ANSI

BXD4000R162SA12S

ISO

BXD4000R162SA12S

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

10

Regular price $588.36 USD
Regular price Sale price $588.36 USD
Sale

EDP

215159

ANSI

BXD4000R162SA12S

ISO

BXD4000R162SA12S

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

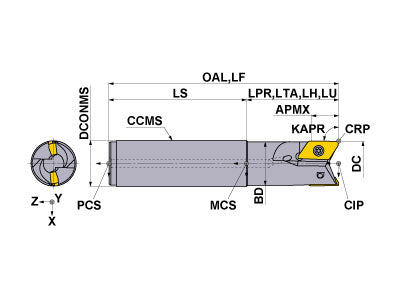

  • Drawings
  • Technical Information
BXD4000R162SA12S
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
6
APMX
0.591
LH
2
OAL
6
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
20
RPMX
38000
BXD4000R162SA12S

Unit: inch

DC
1
LF
6
APMX
0.591
LH
2
OAL
6
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
20
RPMX
38000

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS4SL 230113 TS4SL
inventory mark
$8.23
TKY15W 230130 TKY15W
inventory mark
$4.16
