diaedge
BXD4000R1503
print open mailer

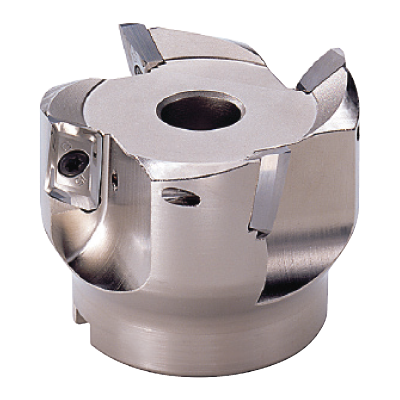

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

215191

ANSI

BXD4000R1503

ISO

BXD4000R1503

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
3

Price
$565.95 USD
$565.95 USD
Sale

EDP

215191

ANSI

BXD4000R1503

ISO

BXD4000R1503

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

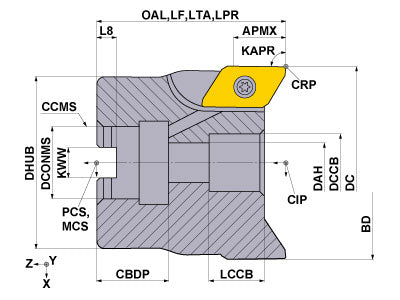

  • Drawings
  • Technical Information
BXD4000R1503
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
1.969
APMX
0.591
OAL
1.969
DCONMS
0.5
DCSFMS
1.26
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
10
RPMX
29000
GAMF
13
GAMP
15
BXD4000R1503

Unit: inch

DC
1.5
LF
1.969
APMX
0.591
OAL
1.969
DCONMS
0.5
DCSFMS
1.26
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
10
RPMX
29000
GAMF
13
GAMP
15


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15W 230130 TKY15W
inventory mark
$4.57
HSCU25014H 361922 HSCU25014H
inventory mark
$17.16
TS4SL 230113 TS4SL
inventory mark
$8.89
