diaedge
BXD4000R2504
Skip to product information

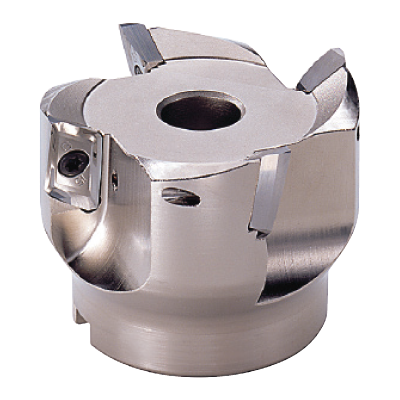

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

215212

ANSI

BXD4000R2504

ISO

BXD4000R2504

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

14

Regular price $741.03 USD
Regular price Sale price $741.03 USD
Sale

EDP

215212

ANSI

BXD4000R2504

ISO

BXD4000R2504

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

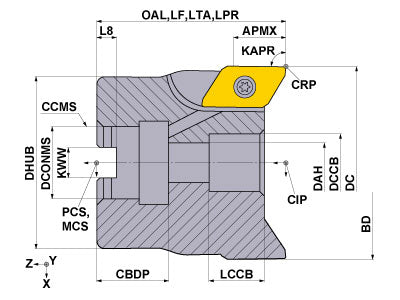

  • Drawings
  • Technical Information
BXD4000R2504
Coolant
Internal
Hand
Right

Unit: inch

DC
2.5
LF
1.969
APMX
0.591
OAL
1.969
DCONMS
0.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
5
RPMX
21000
GAMF
15
GAMP
15
BXD4000R2504

Unit: inch

DC
2.5
LF
1.969
APMX
0.591
OAL
1.969
DCONMS
0.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
5
RPMX
21000
GAMF
15
GAMP
15

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15W 230130 TKY15W
inventory mark
$4.16
HSCU37513H 242835 HSCU37513H
inventory mark
$19.06
TS4SL 230113 TS4SL
inventory mark
$8.23
