diaedge
MS2MRBD0500R050
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

218211

ANSI

MS2MRB/0.5RX5

ISO

MS2MRBD0500R050

P (Steel) K (Cast Iron) H (Hard material)

2

Regular price $101.34 USD
Regular price Sale price $101.34 USD
Sale

EDP

218211

ANSI

MS2MRB/0.5RX5

ISO

MS2MRBD0500R050

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

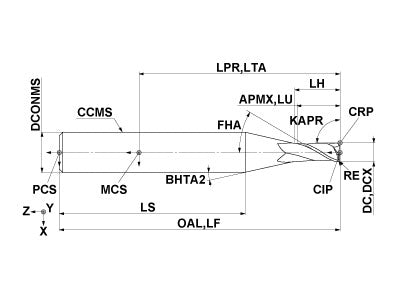

  • Drawings
  • Technical Information
MS2MRBD0500R050
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
10
LU
10
LH
11.2
OAL
50
DCONMS
6
BHTA2
15
RE
0.5
FHA
30
ZEFP
2
ZEFF
2
MS2MRBD0500R050

Unit: mm

DC
5
APMX
10
LU
10
LH
11.2
OAL
50
DCONMS
6
BHTA2
15
RE
0.5
FHA
30
ZEFP
2
ZEFF
2
