diaedge
MS2MRBD0600R050
Skip to product information

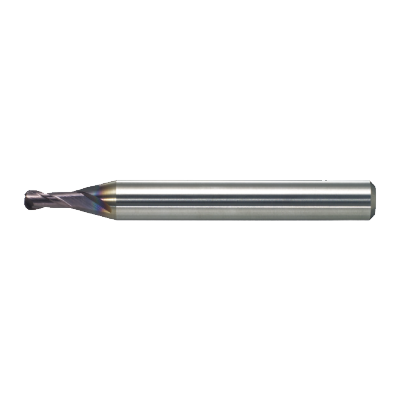

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

218237

ANSI

MS2MRB/0.5RX6

ISO

MS2MRBD0600R050

P (Steel) K (Cast Iron) H (Hard material)

5

Regular price $103.36 USD
Regular price Sale price $103.36 USD
Sale

EDP

218237

ANSI

MS2MRB/0.5RX6

ISO

MS2MRBD0600R050

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

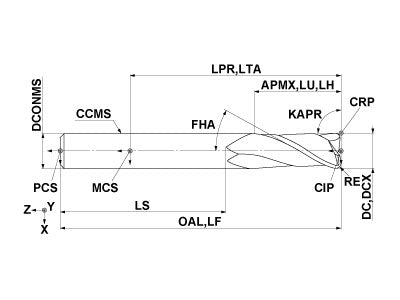

  • Drawings
  • Technical Information
MS2MRBD0600R050
Coolant
External
Hand
Right

Unit: mm

DC
6
APMX
12
LU
12
LH
12
OAL
50
DCONMS
6
RE
0.5
FHA
30
ZEFP
2
ZEFF
2
MS2MRBD0600R050

Unit: mm

DC
6
APMX
12
LU
12
LH
12
OAL
50
DCONMS
6
RE
0.5
FHA
30
ZEFP
2
ZEFF
2
