diaedge
MS2MSD0150
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

218780

ANSI

MS2MS/1.5

ISO

MS2MSD0150

P (Steel) K (Cast Iron) H (Hard material)

5

Regular price $25.86 USD
Regular price Sale price $25.86 USD
Sale

EDP

218780

ANSI

MS2MS/1.5

ISO

MS2MSD0150

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

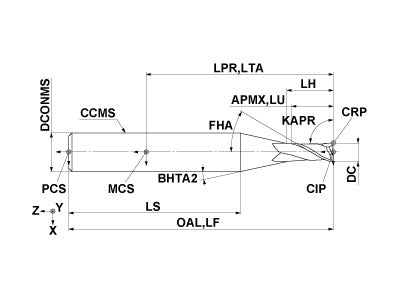

  • Drawings
  • Technical Information
MS2MSD0150
Coolant
External
Hand
Right

Unit: mm

DC
1.5
APMX
3
LU
3
LH
3.4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
MS2MSD0150

Unit: mm

DC
1.5
APMX
3
LU
3
LH
3.4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
