EDP

218819

ANSI

MS2MS/1.8

ISO

MS2MSD0180

P (Steel) K (Cast Iron) H (Hard material)

53

Regular price $31.09 USD
Regular price Sale price $31.09 USD
Sale

EDP

218819

ANSI

MS2MS/1.8

ISO

MS2MSD0180

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

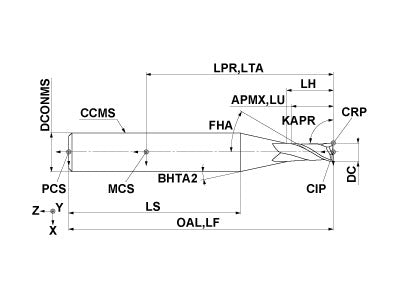

  • Drawings
  • Technical Information
MS2MSD0180
Coolant
External
Hand
Right

Unit: mm

DC
1.8
APMX
3.6
LU
3.6
LH
4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
MS2MSD0180

Unit: mm

DC
1.8
APMX
3.6
LU
3.6
LH
4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
