diaedge
MS2MSD0260
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

218894

ANSI

MS2MS/2.6

ISO

MS2MSD0260

P (Steel) K (Cast Iron) H (Hard material)

7

Regular price $65.57 USD
Regular price Sale price $65.57 USD
Sale

EDP

218894

ANSI

MS2MS/2.6

ISO

MS2MSD0260

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

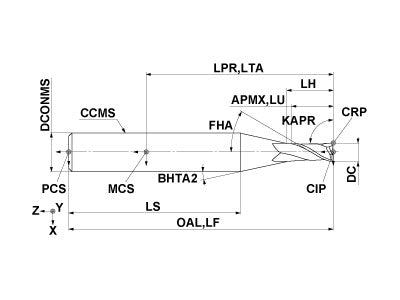

  • Drawings
  • Technical Information
MS2MSD0260
Coolant
External
Hand
Right

Unit: mm

DC
2.6
APMX
5.2
LU
5.2
LH
6.1
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
MS2MSD0260

Unit: mm

DC
2.6
APMX
5.2
LU
5.2
LH
6.1
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
