diaedge
MS2XL6D0070N018
Skip to product information

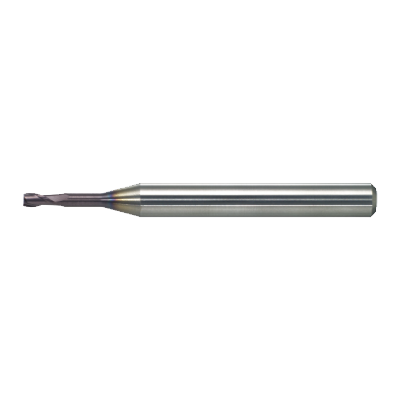

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219053

ANSI

MS2XL6/0.7X1.8

ISO

MS2XL6D0070N018

P (Steel) K (Cast Iron)

5

Regular price $82.49 USD
Regular price Sale price $82.49 USD
Sale

EDP

219053

ANSI

MS2XL6/0.7X1.8

ISO

MS2XL6D0070N018

P (Steel) K (Cast Iron)
View full details
  • Dimensions
  • Features

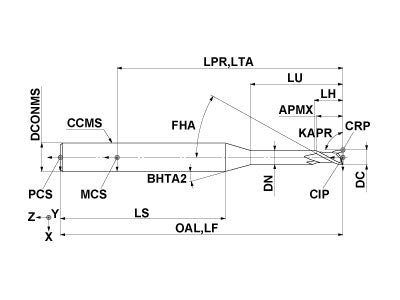

  • Drawings
  • Technical Information
MS2XL6D0070N018
Coolant
External
Hand
Right

Unit: mm

DC
0.7
APMX
1.1
LU
1.8
LH
1.12
OAL
50
DN
0.66
DCONMS
6
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
MS2XL6D0070N018

Unit: mm

DC
0.7
APMX
1.1
LU
1.8
LH
1.12
OAL
50
DN
0.66
DCONMS
6
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
