diaedge
MS2XL6D0210N053
print open mailer

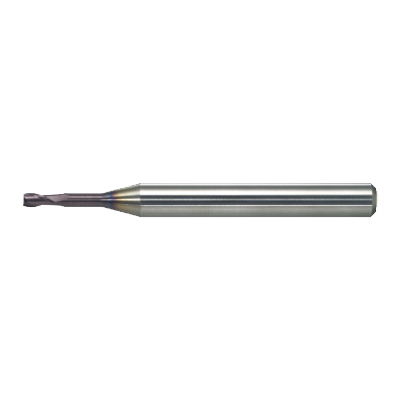

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

219328

ANSI

MS2XL6/2.1X5.3

ISO

MS2XL6D0210N053

P (Steel) K (Cast Iron)

Stock
1

Price
$89.09 USD
$89.09 USD
Sale

EDP

219328

ANSI

MS2XL6/2.1X5.3

ISO

MS2XL6D0210N053

P (Steel) K (Cast Iron)
View full details
  • Dimensions
  • Features

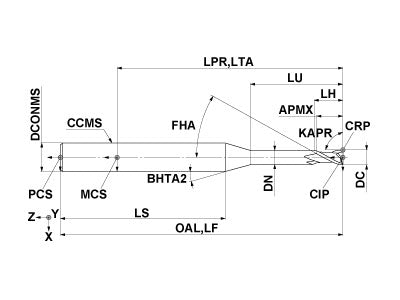

  • Drawings
  • Technical Information
MS2XL6D0210N053
Coolant
External
Hand
Right

Unit: mm

DC
2.1
APMX
3.2
LU
5.3
LH
3.25
OAL
50
DN
2
DCONMS
6
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
MS2XL6D0210N053

Unit: mm

DC
2.1
APMX
3.2
LU
5.3
LH
3.25
OAL
50
DN
2
DCONMS
6
BHTA2
15
FHA
30
ZEFP
2
ZEFF
2
