diaedge
MS4JCD0100
Skip to product information

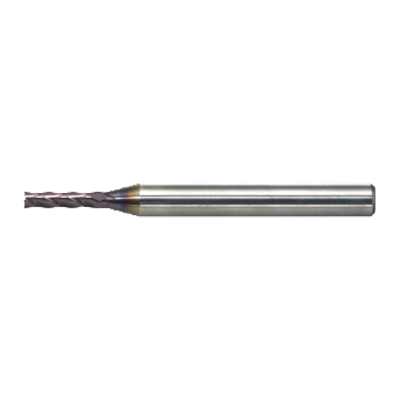

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219432

ANSI

MS4JC/1

ISO

MS4JCD0100

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

594

Regular price $89.43 USD
Regular price Sale price $89.43 USD
Sale

EDP

219432

ANSI

MS4JC/1

ISO

MS4JCD0100

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

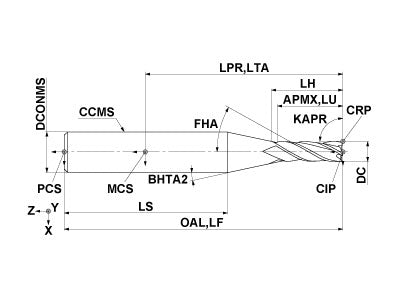

  • Drawings
  • Technical Information
MS4JCD0100
Coolant
External
Hand
Right

Unit: mm

DC
1
APMX
4
LU
4
LH
4.4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4JCD0100

Unit: mm

DC
1
APMX
4
LU
4
LH
4.4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
