diaedge
MS4JCD0150
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219441

ANSI

MS4JC/1.5

ISO

MS4JCD0150

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

113

Regular price $89.43 USD
Regular price Sale price $89.43 USD
Sale

EDP

219441

ANSI

MS4JC/1.5

ISO

MS4JCD0150

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

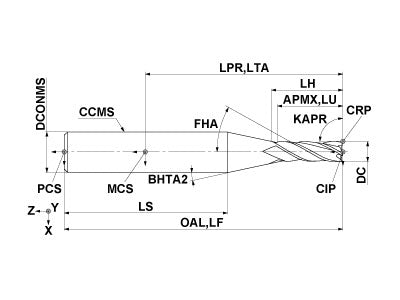

  • Drawings
  • Technical Information
MS4JCD0150
Coolant
External
Hand
Right

Unit: mm

DC
1.5
APMX
6
LU
6
LH
6.4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4JCD0150

Unit: mm

DC
1.5
APMX
6
LU
6
LH
6.4
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
