diaedge

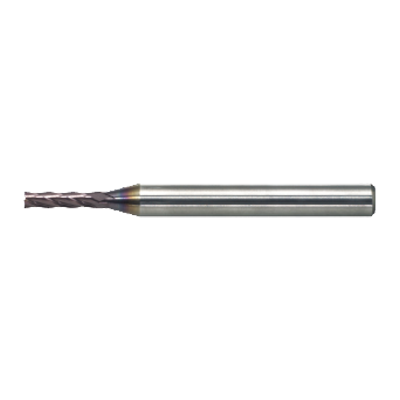

MS4JCD0250
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219467

ANSI

MS4JC/2.5

ISO

MS4JCD0250

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

73

Regular price $64.39 USD
Regular price Sale price $64.39 USD
Sale

EDP

219467

ANSI

MS4JC/2.5

ISO

MS4JCD0250

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

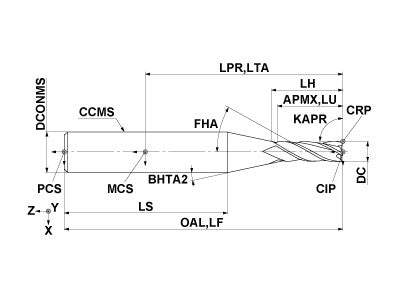

  • Drawings
  • Technical Information
MS4JCD0250
Coolant
External
Hand
Right

Unit: mm

DC
2.5
APMX
10
LU
10
LH
10.9
OAL
50
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4JCD0250

Unit: mm

DC
2.5
APMX
10
LU
10
LH
10.9
OAL
50
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
