diaedge
MS4JCD0300
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219475

ANSI

MS4JC/3

ISO

MS4JCD0300

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

196

Regular price $61.60 USD
Regular price Sale price $61.60 USD
Sale

EDP

219475

ANSI

MS4JC/3

ISO

MS4JCD0300

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details

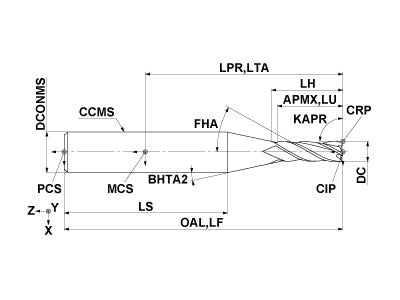

  • Dimensions
  • Features
  • Drawings
  • Technical Information
MS4JCD0300
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
12
LU
12
LH
12.9
OAL
50
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4JCD0300

Unit: mm

DC
3
APMX
12
LU
12
LH
12.9
OAL
50
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
