diaedge
MS4JCD0500
Skip to product information

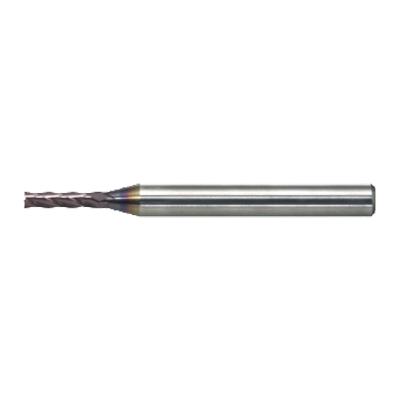

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219491

ANSI

MS4JC/5

ISO

MS4JCD0500

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

29

Regular price $69.93 USD
Regular price Sale price $69.93 USD
Sale

EDP

219491

ANSI

MS4JC/5

ISO

MS4JCD0500

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

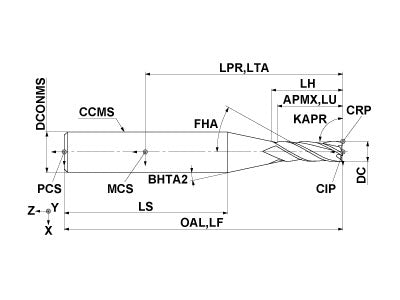

  • Drawings
  • Technical Information
MS4JCD0500
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
20
LU
20
LH
21.2
OAL
60
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4JCD0500

Unit: mm

DC
5
APMX
20
LU
20
LH
21.2
OAL
60
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
