diaedge
MS4MCD0150
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219521

ANSI

MS4MC/1.5

ISO

MS4MCD0150

P (Steel) K (Cast Iron) H (Hard material)

79

Regular price $66.59 USD
Regular price Sale price $66.59 USD
Sale

EDP

219521

ANSI

MS4MC/1.5

ISO

MS4MCD0150

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

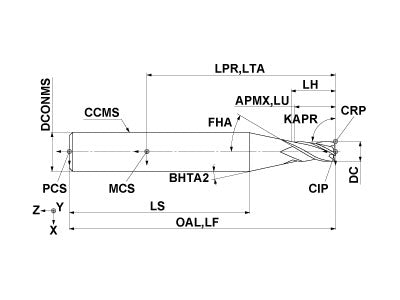

  • Drawings
  • Technical Information
MS4MCD0150
Coolant
External
Hand
Right

Unit: mm

DC
1.5
APMX
3.8
LU
3.8
LH
4.2
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4MCD0150

Unit: mm

DC
1.5
APMX
3.8
LU
3.8
LH
4.2
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
