MS4MCD0200
Skip to product information

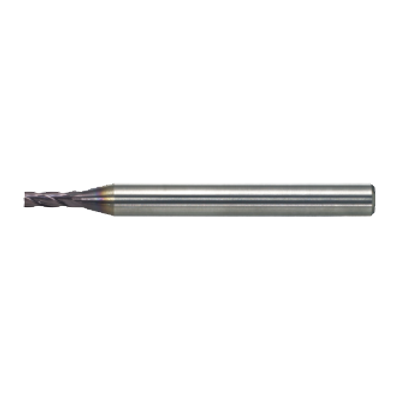

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

219539

ANSI

MS4MC/2

ISO

MS4MCD0200

P (Steel) K (Cast Iron) H (Hard material)

169

Regular price $40.75 USD
Regular price Sale price $40.75 USD
Sale

EDP

219539

ANSI

MS4MC/2

ISO

MS4MCD0200

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

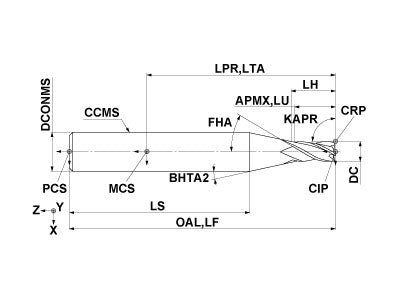

  • Drawings
  • Technical Information
MS4MCD0200
Coolant
External
Hand
Right

Unit: mm

DC
2
APMX
5
LU
5
LH
5.9
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4MCD0200

Unit: mm

DC
2
APMX
5
LU
5
LH
5.9
OAL
40
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
