EDP
22692375
ANSI
DP9020
ISO

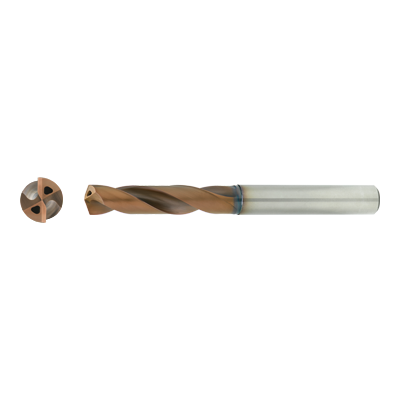

DSAS1000X05S100 DP9020
Stock
2
Price
Regular price
$356.94 USD
Regular price
Sale price
$356.94 USD
Unit price
/
per
EDP
22692375
ANSI
DP9020
ISO
DSAS1000X05S100 DP9020
Change the number in sums of 1s.
Couldn't load pickup availability

- Dimensions
- Features

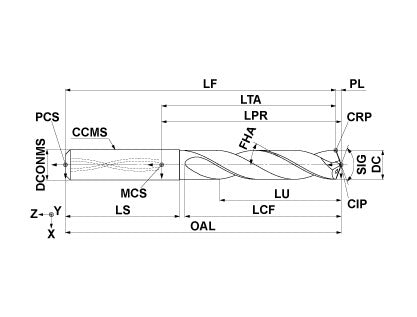

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: mm
DC
10
ULDR
5
LU
51.8
LCF
71.8
OAL
122.8
DCONMS
10
PL
1.8
SIG
140
FHA
28
DC Max
0
DC Min
-0.022
ZEFF
2
Unit: mm
DC
10
ULDR
5
LU
51.8
LCF
71.8
OAL
122.8
DCONMS
10
PL
1.8
SIG
140
FHA
28
DC Max
0
DC Min
-0.022
ZEFF
2
TRI-Cooling Technology
Straight Cutting Edge with Single-Pass Honing
New Grade for Machining of Heat Resistant Alloys DP9020
Special Margin
2D Model (DXF)
3D Model (STP)
