- Dimensions
- Features

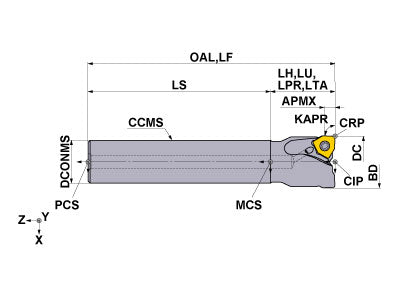

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: inch
DC
1.125
LF
8.5
APMX
0.197
LH
1.75
OAL
8.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RPMX
27400
GAMF
-17
GAMP
-6
WT
1.800
