diaedge
WWX200UR2.5006CA
Skip to product information

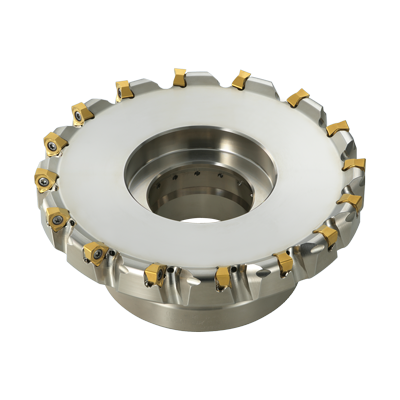

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

22864017

ANSI

WWX200UR2.5006CA

ISO

WWX200UR2.5006CA

90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

3

Regular price $611.64 USD
Regular price Sale price $611.64 USD
Sale

EDP

22864017

ANSI

WWX200UR2.5006CA

ISO

WWX200UR2.5006CA

90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions
  • Features

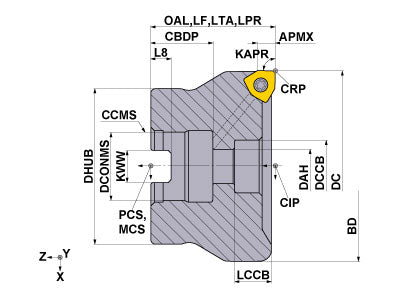

  • Drawings
  • Technical Information
WWX200UR2.5006CA
Coolant
Internal
Hand
Right

Unit: inch

DC
2.5
LF
2
APMX
0.197
OAL
2
DCONMS
1
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RPMX
16000
GAMF
-12
GAMP
-6
WT
1.6
WWX200UR2.5006CA

Unit: inch

DC
2.5
LF
2
APMX
0.197
OAL
2
DCONMS
1
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RPMX
16000
GAMF
-12
GAMP
-6
WT
1.6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP10D 10526941 TIP10D
inventory mark
$16.97
MK1KS 291805 MK1KS
inventory mark
$3.91
