diaedge

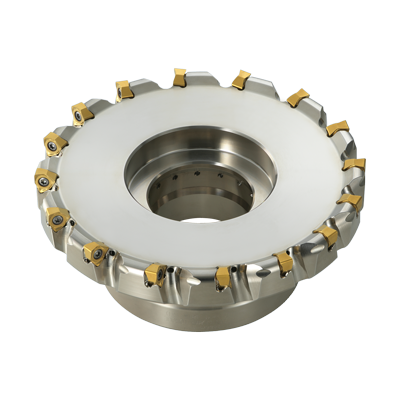

WWX200UR4.0011EA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

22864284

ANSI

WWX200UR4.0011EA

ISO

WWX200UR4.0011EA

90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling

7

Regular price $1,100.95 USD
Regular price Sale price $1,100.95 USD
Sale

EDP

22864284

ANSI

WWX200UR4.0011EA

ISO

WWX200UR4.0011EA

90 Accuracy_finishing Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling
View full details
  • Dimensions
  • Features

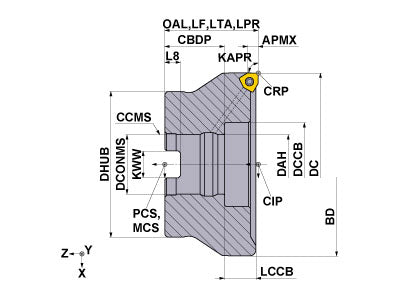

  • Drawings
  • Technical Information
WWX200UR4.0011EA
Coolant
Internal
Hand
Right

Unit: inch

DC
4
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
1.5
NOF
11
ZEFF
11
ZEFP
11
KAPR
90
RPMX
11700
GAMF
-12
GAMP
-6
WT
4.9
WWX200UR4.0011EA

Unit: inch

DC
4
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
1.5
NOF
11
ZEFF
11
ZEFP
11
KAPR
90
RPMX
11700
GAMF
-12
GAMP
-6
WT
4.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP10D 10526941 TIP10D
inventory mark
$16.97
MK1KS 291805 MK1KS
inventory mark
$3.91
