The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
EDP
22908650
ANSI
VQLCS/8
ISO
VQLCSD0800
Stock
17
Price
Regular price
$172.74 USD
Regular price
Sale price
$172.74 USD
Unit price
/
per
EDP
22908650
ANSI
VQLCS/8
ISO
VQLCSD0800
Change the number in sums of 1s.
- Dimensions
- Features

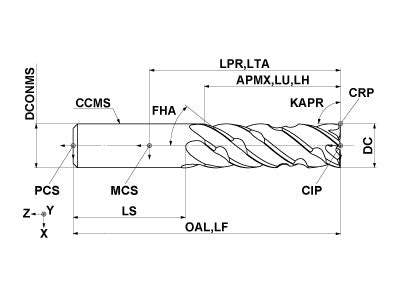

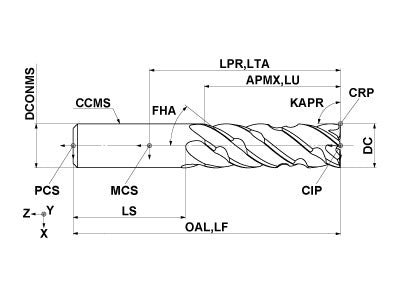

- Drawings
- Technical Information
Coolant
External
Hand
Right
Unit: mm
DC
8
APMX
32
LU
32
LH
32
OAL
90
DCONMS
8
FHA
40
ZEFP
5
ZEFF
5
Unit: mm
DC
8
APMX
32
LU
32
LH
32
OAL
90
DCONMS
8
FHA
40
ZEFP
5
ZEFF
5
Chip breaker type end mill for efficient chip breaking capabilities that also provides good surface finishes.
A high rigidity Smart Miracle vibration damping end mill for high efficiency trochoidal milling.
2D Model (DXF)
3D Model (STP)
