CB03RS-01B MS9025
print open mailer

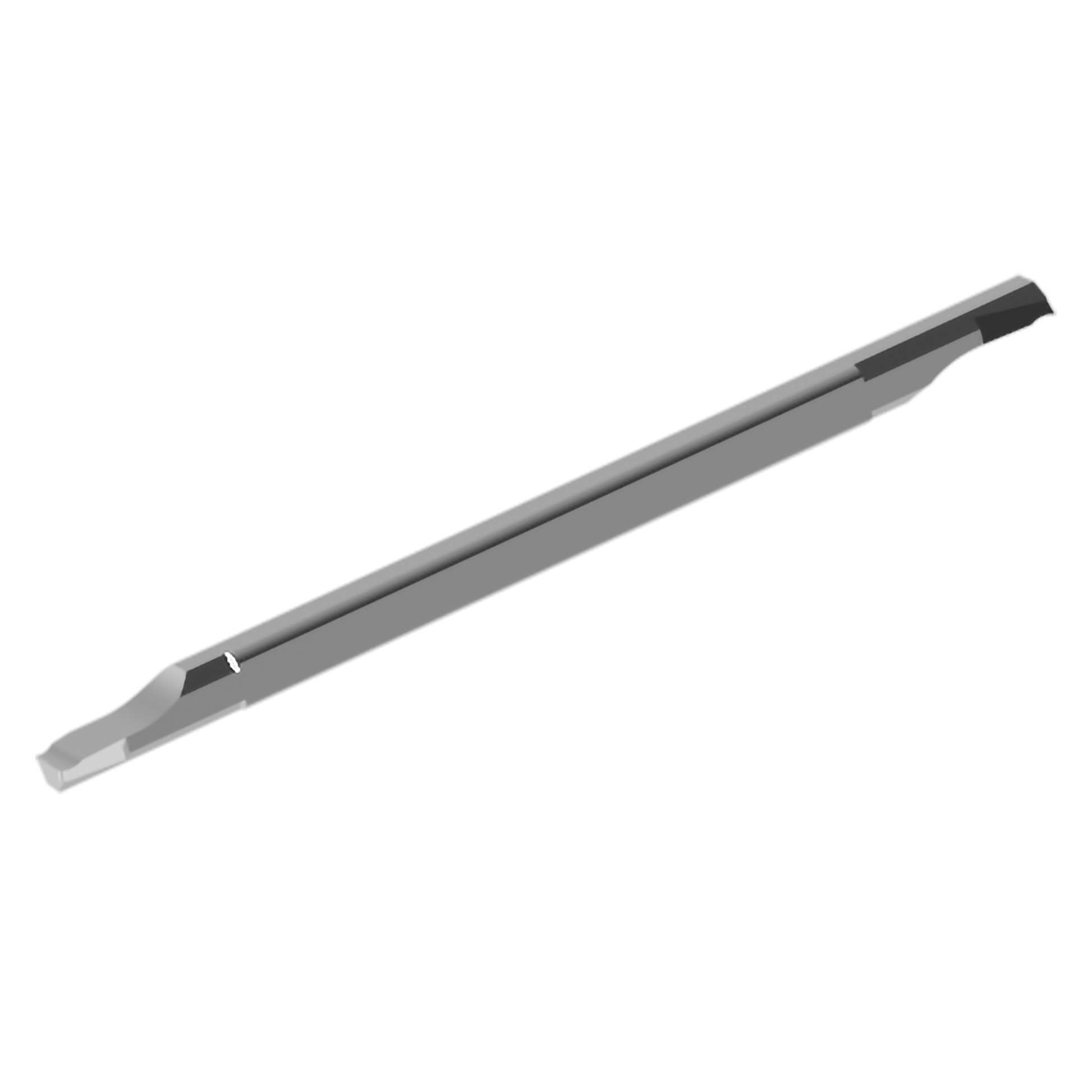

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

23184152

ANSI

MS9025

ISO

CB03RS-01B MS9025

Stock
8

Price
$81.04 USD
$81.04 USD
Sale

EDP

23184152

ANSI

MS9025

ISO

CB03RS-01B MS9025
View full details
  • Dimensions

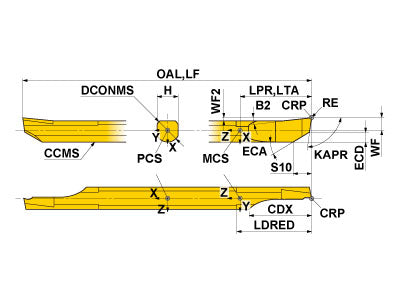

  • Drawings
CB03RS-01B MS9025
Coolant
External
Hand
Right

Unit: mm

RE
0.1
CDX
7.5
DMIN
3.2
DCONMS
3
LF
50
LDRED
9
WF
1.5
WF2
0.35
H
2.7
CB03RS-01B MS9025

Unit: mm

RE
0.1
CDX
7.5
DMIN
3.2
DCONMS
3
LF
50
LDRED
9
WF
1.5
WF2
0.35
H
2.7
