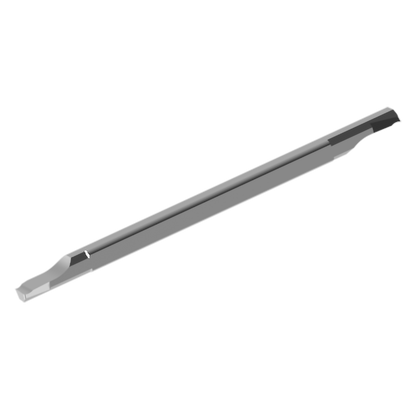

CB035RS-02B MS9025
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

23184732

ANSI

MS9025

ISO

CB035RS-02B MS9025

Stock
1

Price
$87.91 USD
$87.91 USD
Sale

EDP

23184732

ANSI

MS9025

ISO

CB035RS-02B MS9025
View full details
  • Dimensions

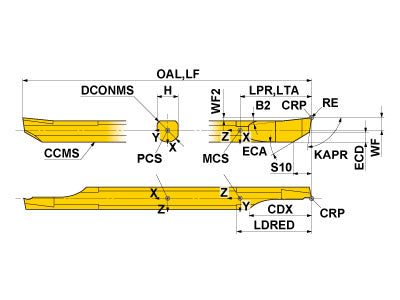

  • Drawings
CB035RS-02B MS9025
Coolant
External
Hand
Right

Unit: mm

RE
0.2
CDX
8.75
DMIN
3.7
DCONMS
3.5
LF
60
LDRED
10.5
WF
1.75
WF2
0.4
H
3.15
CB035RS-02B MS9025

Unit: mm

RE
0.2
CDX
8.75
DMIN
3.7
DCONMS
3.5
LF
60
LDRED
10.5
WF
1.75
WF2
0.4
H
3.15
