EDP
23790957
ANSI
DP1120
ISO
DVAS0104X02S040 DP1120
Stock
13
Price
Regular price
$153.29 USD
Regular price
Sale price
$153.29 USD
Unit price
/
per
EDP
23790957
ANSI
DP1120
ISO
DVAS0104X02S040 DP1120
Change the number in sums of 1s.
Couldn't load pickup availability

- Dimensions

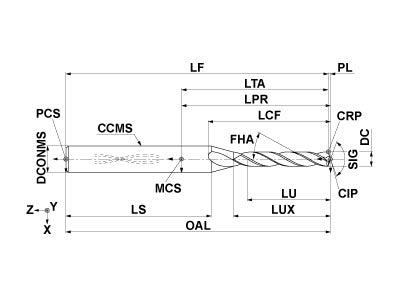

- Drawings
Coolant
Internal
Hand
Right
Unit: mm
DC
1.041
ULDR
2
LU
2.3
LCF
8.89
OAL
50
DCONMS
4
PL
0.184
SIG
141
FHA
28
DC Max
0.006
DC Min
-0.004
TCDCON
h6
ZEFF
2
Unit: mm
DC
1.041
ULDR
2
LU
2.3
LCF
8.89
OAL
50
DCONMS
4
PL
0.184
SIG
141
FHA
28
DC Max
0.006
DC Min
-0.004
TCDCON
h6
ZEFF
2
2D Model (DXF)
3D Model (STP)
