diaedge
MS2MRBD0200R050
Skip to product information

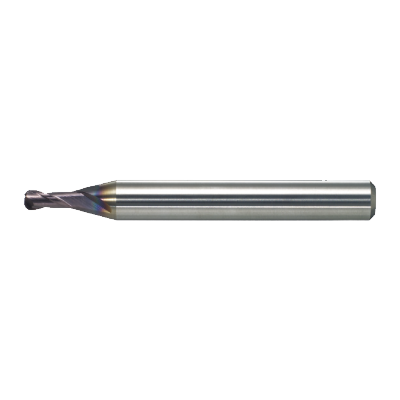

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

238457

ANSI

MS2MRB/0.5RX2

ISO

MS2MRBD0200R050

P (Steel) K (Cast Iron) H (Hard material)

32

Regular price $78.52 USD
Regular price Sale price $78.52 USD
Sale

EDP

238457

ANSI

MS2MRB/0.5RX2

ISO

MS2MRBD0200R050

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

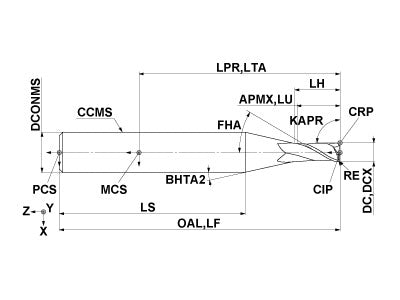

  • Drawings
  • Technical Information
MS2MRBD0200R050
Coolant
External
Hand
Right

Unit: mm

DC
2
APMX
4
LU
4
LH
4.9
OAL
40
DCONMS
4
BHTA2
15
RE
0.5
FHA
30
ZEFP
2
ZEFF
2
MS2MRBD0200R050

Unit: mm

DC
2
APMX
4
LU
4
LH
4.9
OAL
40
DCONMS
4
BHTA2
15
RE
0.5
FHA
30
ZEFP
2
ZEFF
2
