diaedge

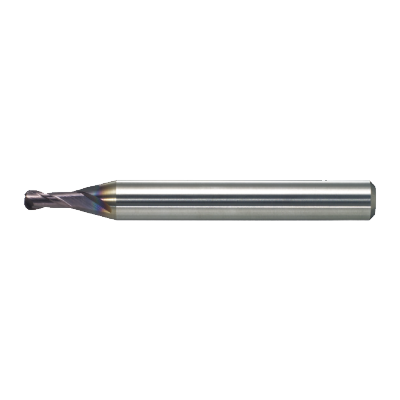

MS2MRBD0250R030
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

238465

ANSI

MS2MRB/0.3RX2.5

ISO

MS2MRBD0250R030

P (Steel) K (Cast Iron) H (Hard material)

7

Regular price $78.52 USD
Regular price Sale price $78.52 USD
Sale

EDP

238465

ANSI

MS2MRB/0.3RX2.5

ISO

MS2MRBD0250R030

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

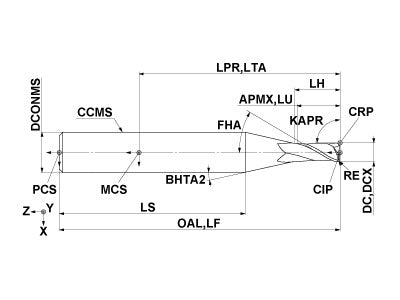

  • Drawings
  • Technical Information
MS2MRBD0250R030
Coolant
External
Hand
Right

Unit: mm

DC
2.5
APMX
5
LU
5
LH
5.9
OAL
40
DCONMS
4
BHTA2
15
RE
0.3
FHA
30
ZEFP
2
ZEFF
2
MS2MRBD0250R030

Unit: mm

DC
2.5
APMX
5
LU
5
LH
5.9
OAL
40
DCONMS
4
BHTA2
15
RE
0.3
FHA
30
ZEFP
2
ZEFF
2
