VQ4XLRBD0080R010N024
print open mailer

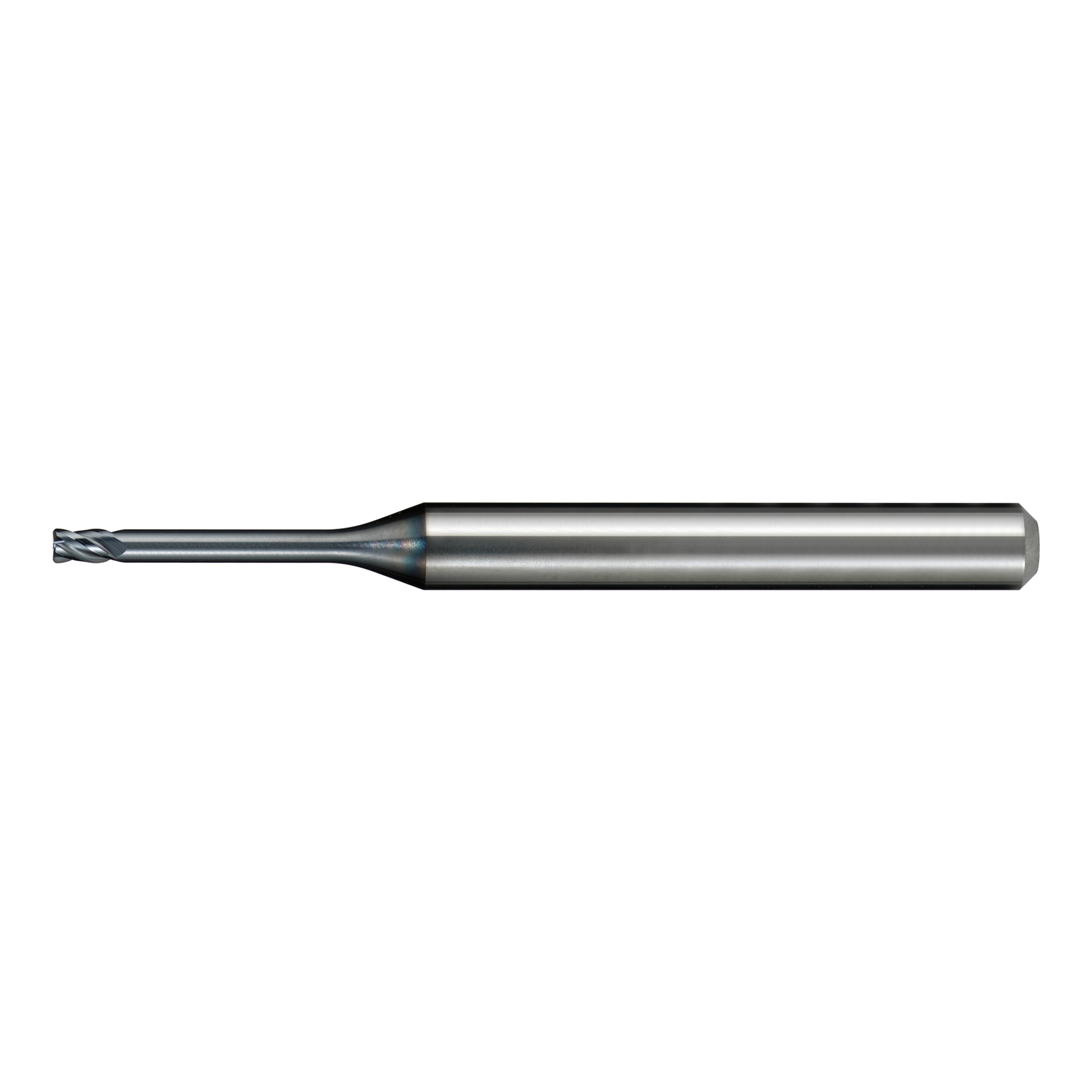

The actual product may differ from the displayed image.
print open mailer

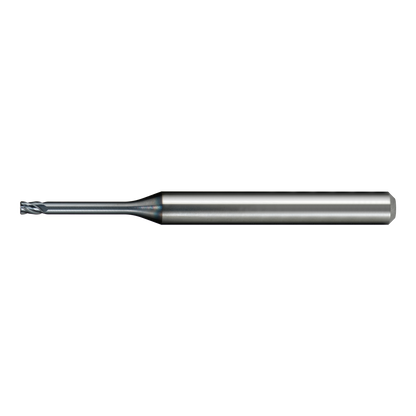

The actual product may differ from the displayed image.

1 2

EDP

23978201

ANSI

VQ4XLRB/.1RX0.8X2.4

ISO

VQ4XLRBD0080R010N024

Stock
16

Price
$118.35 USD
$118.35 USD
Sale

EDP

23978201

ANSI

VQ4XLRB/.1RX0.8X2.4

ISO

VQ4XLRBD0080R010N024

View full details
  • Dimensions

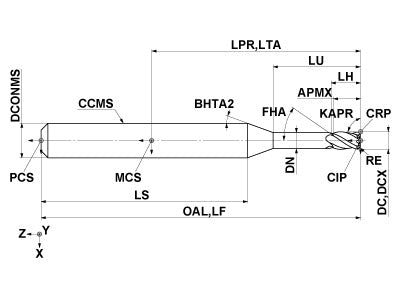

  • Drawings
VQ4XLRBD0080R010N024
Coolant
External
Hand
Right

Unit: mm

DC
0.8
APMX
1.2
LU
2.4
LH
1.22
OAL
40
DN
0.76
DCONMS
4
BHTA2
20
RE
0.1
FHA
35
ZEFP
4
ZEFF
4
VQ4XLRBD0080R010N024

Unit: mm

DC
0.8
APMX
1.2
LU
2.4
LH
1.22
OAL
40
DN
0.76
DCONMS
4
BHTA2
20
RE
0.1
FHA
35
ZEFP
4
ZEFF
4
