EDP
23986169
ANSI
VQ2XLB/0.03905RX3D
ISO
VQ2XLBDU078N3D
Stock
28
Price
Regular price
$101.87 USD
Regular price
Sale price
$101.87 USD
Unit price
/
per
EDP
23986169
ANSI
VQ2XLB/0.03905RX3D
ISO
VQ2XLBDU078N3D
Change the number in sums of 1s.
Couldn't load pickup availability

- Dimensions

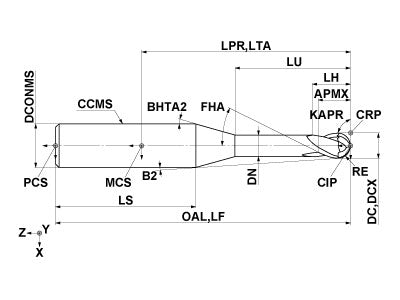

- Drawings
Coolant
External
Hand
Right
Unit: mm
DC
1.984
APMX
1.488
LU
5.951
LH
1.518
OAL
40
DN
1.924
DCONMS
4
BHTA2
15
RE
0.992
FHA
30
ZEFP
2
ZEFF
2
Unit: mm
DC
1.984
APMX
1.488
LU
5.951
LH
1.518
OAL
40
DN
1.924
DCONMS
4
BHTA2
15
RE
0.992
FHA
30
ZEFP
2
ZEFF
2
2D Model (DXF)
3D Model (STP)
